 Flat Fan Adjustable Air Atomizing Nozzle

presure fan 2

pressure fan 1
Flat Fan Adjustable Air Atomizing Nozzle

Adjustable Air Atomizing Nozzles
Thread Size: F 1/4"BSPT; F 1/2"BSPT

Spray Angle: 70 degree

Material: SS

Delivery Time:  3 --7 days

Payment: T/T; Western Union; Paypal

Shipping: DHL ; UPS, AIR; SEA

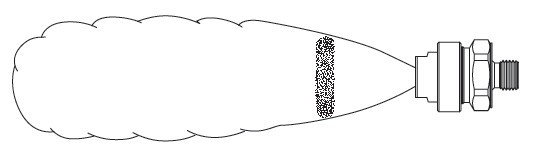

Pressure Principle:

It is the most widely used, and therefore a large range of capacities and spray patterns are available.
Liquid capacity, air capacity and droplet sizes can be adjusted by regulating the air and liquid feed pressures and the two fluids are mixed inside the adjustable air atomizing nozzle prior to be ejected.

pressure type air atomizing nozzles



Design Feature:

1.Pressure Type Adjustable air atomizing nozzle
   Air pressure and liquid pressure both are demanded.

   With needle, the flow rate could be adjusted by screwing the needle; or, flow rate could not be adjustable.

2. For pressure type Adjustable air atomozing nozzle, there are THREE spray pattern:

   Flat Fan spray pattern , Round Spray pattern, and wide angle spray pattern.

   Flat fan spray's angle is about 70 degree;



   Round spray's angle is about 30 degree;

  Wide angle round spray's angle is about 30 degree to 120 degree.





3.Inner structural design makes liquid and air mix fine, then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the adjustable air atomizing nozzles spray more fine droplets( about 30micron).



4.Keeping liquid pressure and air pressure unchanged, as adjustable air atomizing nozzle could adjust liquid flow rate, then it also could spray according to your requirement.



5. Every spraying device consists of air cap and liquid cap.So if you want to use the suitable air atomizing nozzle , then you have to choose the right air cap and liquid cap.



6.There are two inlet in the nozzle body.: liquid inlet and air inlet. We will mark " LIQUID" and "AIR" OR "L" and " A" on the nozzle. "LIQUID" AND "L" stands for liquid inlet, "AIR" and "A" stands for air inlet.



7.Adjustable air atomizing nozzle could spray very fine. it also could humidify environmental air very well. It is a ideal choose to use it in places need some certain humidify.



8.The air atomizing nozzle could spray a distance of 3 meter. Compared with high pressure fog nozzles, this kind of nozzle is easy to install, have a long live life, cheaper pipe lines, and so on. It is widely used in High-temperature Wax factory, cementplant, injection factory, Ceramics Factory, metallurgical factory and other places t o humidify, cool, dust removal, disinfection and so on.



9. what's the Working Pressure of our adjustable air atomizing nozzle?

    Usually, air pressure not less than 4bar; liquid pressure not less than 3bar
