WI Seires Fog Mist Nozzles

Model No. : WI series

Working Pressure:  High Presssure

Thread Size: 1/8

Delivery Time:  3 --7 days

Payment: T/T; Western Union; Paypal

Packing: 50pcs in one green Plastic Box

Shipping: DHL ; UPS, TNT; FEDEX; AIR; SEA

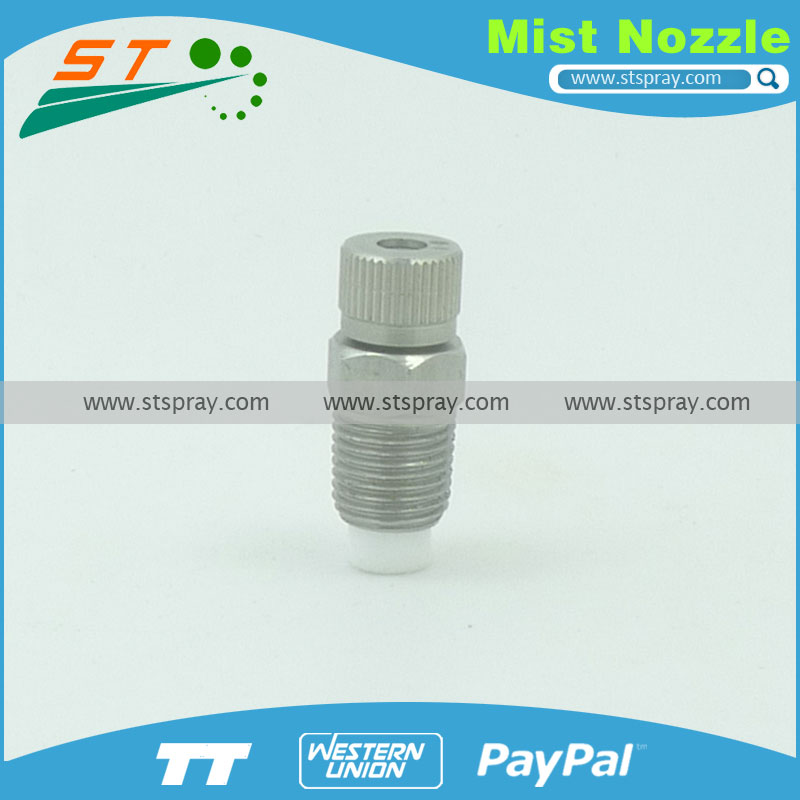

WI Series High Pressure Mist Nozzle has a white filter at the bottom. It helps filter the water again and protection the nozzle being clogged.



Following is our different model No. of WI Series high pressure mist nozzles for your reference:


 Item No.:  WIA  Item No.:  WIB

 Item No.:  WIC  Item No.:  WID

Above nozzles are the SAME, just the Material and Appearance are NOT SAME.
Pls choose the ones you like.

Similarities:
1) Thread size: 1/8"
2) SS Orifice size: 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
   Ceramic Orifice size: 0.08mm; 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
3) Water Drop Size:  3 micron --- 70 micron
4) With Anti-drop Device inside Nozzle
5) High working Pressure: up to 1300psi ( 80bar)
    WID high pressure mist nozzle's working pressure could up to 2000psi ( 140bar)




Diferences: (Especially Material)

WIA includes WIA-SS and WIA-CE

WIA-SS :  Brass body + Stainless Steel Orifice

WIA-CE :  Brass body + Ceramic Orifice

WIB includes WIB-SS and WIB-CE

WIB-SS :  Stainless Steel  body + Stainless Steel Orifice

WIB-CE :  Stainless Steel body + Ceramic Orifice

WIC includes:

WIC-SS: Nickel Plated Body + Stainless Steel Orifice

WIC-CE: Nickel Plated Body + Ceramice Orifice

Feature: WIC's orifice could be replaced.

WID Includes WID-SS and WID-CE

WID-SS :  Stainless Steel body + Stainless Steel Orifice

WIDED-CE :  Stainless Steel body + Ceramic Orifice

Feature: WID's orifice could be replaced.

                Working Pressure could up to 2000psi( 140bar).



Fog Mist Nozzles' Flow Rate is here:
Flow Rate matters with nozzle's orifice size and working pressure.

Orifice Size

Working Pressure

Flow Rate ( ml /min)

0.08mm

70bar / 1000psi

23 ml/miin

0.10mm

70bar / 1000psi

35 ml/min

0.15mm

70bar / 1000psi

46 ml/min

0.20mm

70bar / 1000psi

89 ml/min

0.30mm

70bar / 1000psi

145 ml/min

0.40mm

70bar / 1000psi

178 ml/min

0.50mm

70bar / 1000psi

243 ml/min

0.60mm

70bar / 1000psi

320 ml/min



Are you look  looking for the related accessories to install WI series fog mist nozzles ?

Threaded fittings



Noted:

OEM and ODM Are Available



Application :

fog mist nozzles
