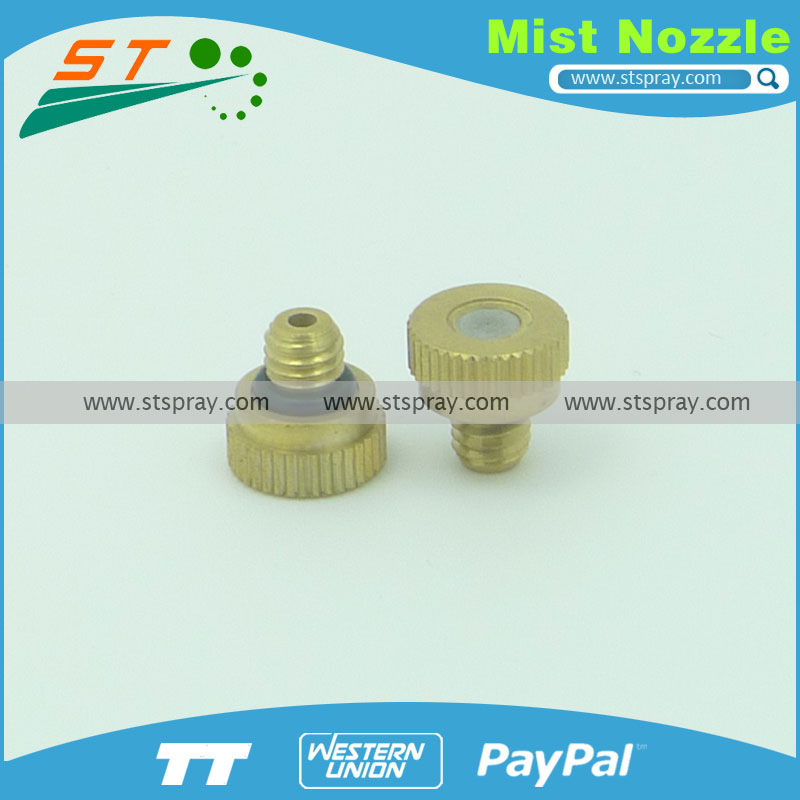

FT Low Pressure Misting Nozzle

Low Pressure Misting Nozzle

Model No. : FT

Working Pressure:  3bar -15bar

Thread size: 3/16"; 10/24"

Material: Brass or Brass coated with Nickel



FT Low Pressure Misting Nozzle adopts the low pressure design principle, producing fine spray effects. It is widely used in the field of low pressure fog generation and narrow installation space, with low condition requirements, a perfect choice for users that have neither high-pressure pumps nor air pressure.



Basic Information of Low Pressure Misting Nozzle is as following:
Thread Size: 3/16 ; 10/24; M5
Material: Brass Body with SS orifice
Working Pressure: under 2bar (30psi) pressure
Orifice Size: 0.2mm, 0.3mm; 0.4mm and larger size;
Spray Angle: 30-50 degrees


Flow Rate:

Orifice        Water Pressure            Spray Angle           Flow Rate               Diameter of water drop

0.3mm            2bar                          20degree               8 ml/min                         20u

0.3mm            5bar                          45degree              20 ml/min                       20u



Typical Applications:
 Misting fan; low pressure fog generation; humidification; cooling; greenhouse, etc.



Accessaries:

Click this link, and go to the fittings page.



With easy installation procedure and simple structure, The FT Low Pressure Misting Nozzle is widely used in the MISTING FAN.

low pressure misting nozzles



Compared to utilizing ultrasound and high pressure atomizing spray nozzle for the spray fan,
using the FT Low Pressure Misting Nozzle reduces the cost and increases the atomization efficiency significantly.




Detailed Pics:

fog mist maker

fog mist humidifier

low pressure misting systems
