FJ SS Ruby Fog Nozzle

2

2

NJ

2

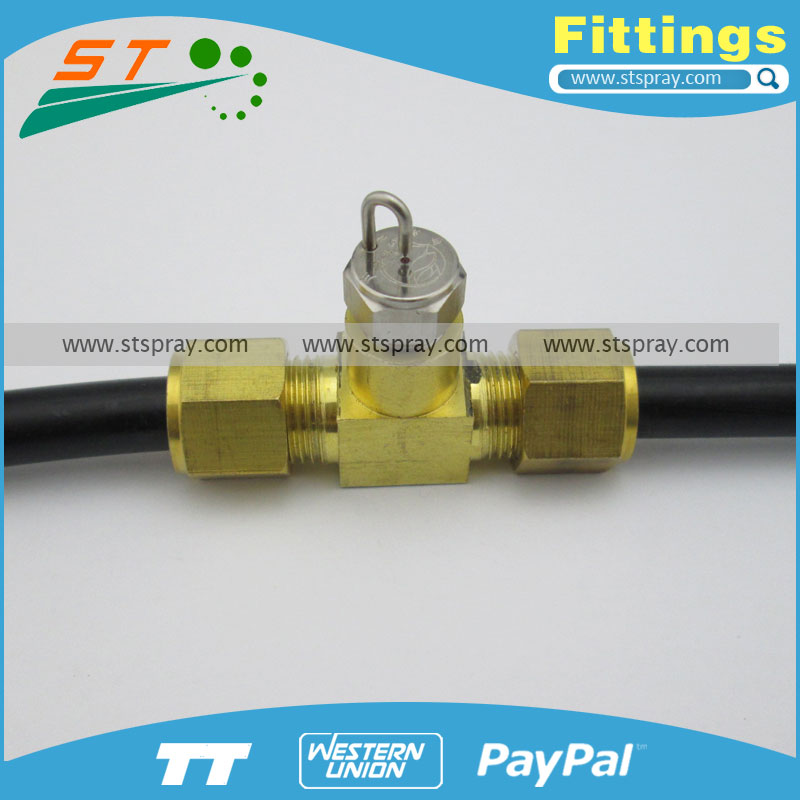

FJ SS Ruby Fog Nozzle

Model No. : FJ

Working Pressure:  High Presssure

Thread Size: 1/8"NPT

Material: SS with Ruby Orific

Delivery Time:  3 --7 days



FJ High Pressure Dense Fog Nozzle,Ruby Fog Nozzle, Misting Nozzles With Pin


Feature:
1) Create much more dense fog than FD and ED high pressure system

2) Material of FJ Ruby Fog Nozzle, Misting Nozzles With Pin : SS body with Ruby Orifice or SS body with SS Orifice


Percussion type stainless steel fog nozzle is one of the key parts of the artificially created mist system. Artificially created mist system engineering can be used in forest , garden, city square, film base, war game, residential quarter, and so on. Mist effect is natural and vivid.



Water mist can keep a long time in air and the cost is low, what's more, it can pure the air. The diameter of the mist drop ranges from 7um to 20um,and it could make denson fog than our FD and ED high pressure mist nozzle. The instant spray height is  about 1500mm. In the breezeless or breeze state, it can reaches ten meters in height.Single nozzle's mist can spread about more 2 square meters.



The mist angle(30 degree to 170 degree) can meet your choose. With the filter fittings, the performance of  blocking has been reduced .We can make the nozzles as your requirement, the smallest orifice is 0.10mm and the accuracy can be ±0.002. This technology have reached the world advanced level. Connector usually is 1/8" NPT, we also can provide you with 1/8" BSPT, and the metric system M10*1.


Working Temp: normal

Medium: Water ; oil gas and liquid medicine



Material:body is stainless steel. Nozzle tip can be stainless steel inserted(NJ-S) or ruby inserted(NJ-R). Generally, NJ-S can meet your need, and its cost is lower. It can meet your requirement basically. In the hard occasion, you can use NJ-R, as the nozzle tip can stand the shock and friction result from the high speed flood. Thus the wear resistance of nozzle tip is prompted mostly, and make the nozzle has a long life. We advise that the most pressure used on the stainless steel nozzle should better be 70bar and 100bar on the ruby, It will result the wear of the nozzle and lead the nozzle's life reduced, if the working pressure exceed the most .



Flow rate of Ruby Fog Nozzle, Misting Nozzles With Pin, Fogging Nozzles :

Orifice(mm)

Flow rate(L/min)

Pressure(PSI)

Male size

0.15

0.035-0.05

435-1015

NPT1/8-27

0.20

0.06-0.09

435-1015

NPT1/8-27

0.30

0.095-0.165

435-1015

NPT1/8-27

0.40

0.14-0.22

435-1015

NPT1/8-27

0.50

0.17-0.285

435-1015

NPT1/8-27



Application of our FJ Ruby Fog Nozzle, Misting Nozzles With Pin :

cooling,  dust extraction, wet, artificial water fog.
