Wind Jet NozzlesWhen considering importing spray nozzles from China, our company stands as your ideal partner. As a dedicated spray nozzle manufacturer, we are committed to providing excellent service and products to meet the import needs of our international customer.

Slotted Fan Blow Nozzles

Product Name:Slotted Fan Blow Nozzle
Material: stainless steel (SS)
Working pressure: 0.2-10MPA
Working temperature: 0-450℃
Product Specifications: 1/8“; 1/4” 3/8“; 1/2” bspt / Npt
Nozzle type: slotted
Medium: gas, water
Installation: male threaded connection
Application: The blowing nozzle can spray high impulse, fan-shaped compressed air flow, for large area, close distance, uniform blowing, more widely used!

Slotted Fan Blow Nozzle Size Display：

Get A Quick Quote

OVERVIEW

Slotted fan blowing nozzles are widely used in high-pressure blowing, rinsing equipment, product cleaning, blowing air drying applications, etc., and play an extremely important role in improving product quality and production efficiency.

Slotted Fan Blow Nozzle Advantages:

1. Filter can be added, easy to clear first;

2. When spraying air, the air curtain has a large angle, which is convenient for blowing;

3. Adopting unit combination type connection, easy to install and replace;

4. The tip-seam structure can spray water or air and water vapor;

5. Spray shape for the flat fan, spray angle of 70 °, spray water when the radial width of the water mist is larger, the formation of thicker water curtains, good results in cleaning applications.

6. The unique spherical groove design of the nozzle and the large and unobstructed flow channel make the spray effect better.

7. Selection of high-quality materials, hardness, wear resistance, high temperature and corrosion resistance, long life, high density, applicable to a wide range of occasions.

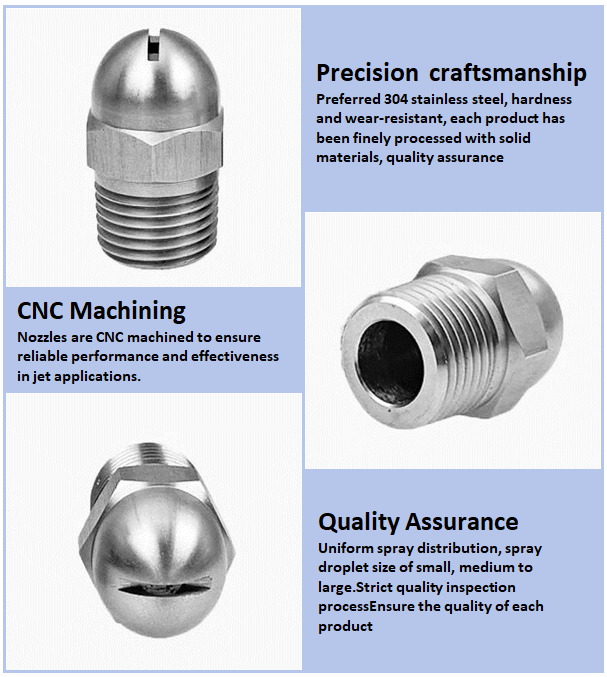

Slotted Fan Blow Nozzle Details：

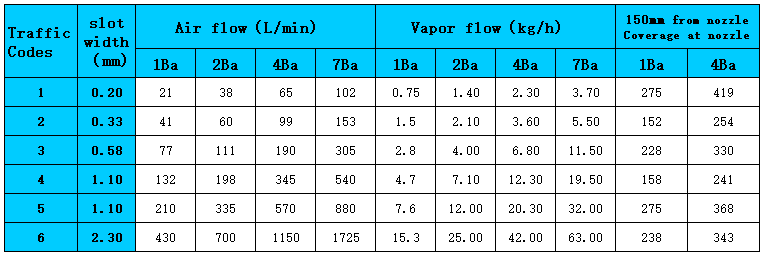

Slotted Fan Blow Nozzle Performance Parameters:

Slotted fan blowing nozzle applications: cleaning, rinsing, blowing drying, steam humidification, cooling blowing

Slotted Fan Blow Nozzle Associated Accessories:
